Euro fence
SEND EMAIL TO US

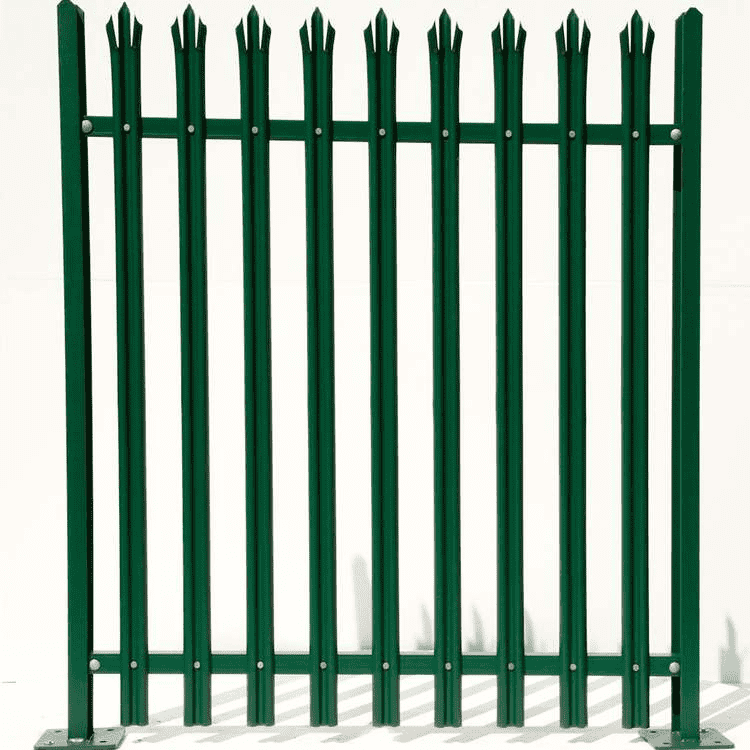

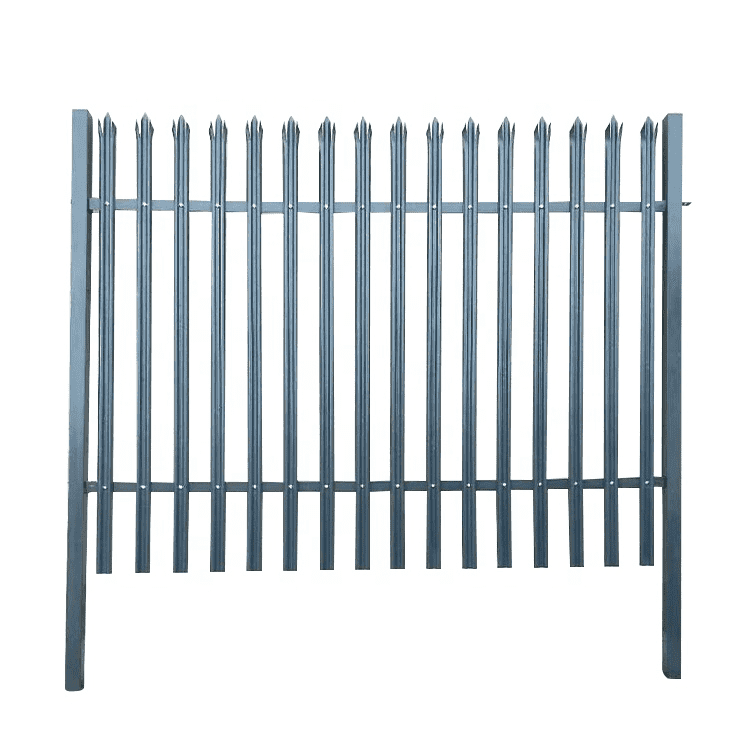

Palisade fence, as effective security fencing, is the widest used type in the world. The forbidding appearance, inherent strength and high damage resistance make the palisade fencing one of the best choices of premise protection.
Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.
| Fence panel height | 1m-6m |
| Fence panel width | 1m-3m |
| Pale height | 0.5m-6m |
| Pale width | W pale 65-75mm d pale 65-70mm |
| Pale thickness | 1.5-3.0mm |
| Angle rail | 40mmx40mm 50mmx50mm 63mmx63mm |
| Angle rail thickness | 3mm-6mm |
| RSJ post | 100mmx55mm 100mmx68mm 150mmx75mm |
| Square post | 50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm |
| Square post thickness | 1.5mm-4.0mm |
| Straight fishplates or post clamps | 30mmx150mmx7mm 40mmx180mmx7mm |
| Bolts and nuts | M8XNo.34 for pale fixing M12xNo.4 for rail fixing |
|
If you have any other questions, please click here to ” send an inquiry ” |
|
